Bootstrap

Bootstrapping is the process where a device retrieves the configuration it needs to start or recover communication with Magistrala. A device usually bootstraps when:

• it has only bootstrap credentials and does not yet have its runtime configuration
• it cannot connect with the configured Magistrala services
• it needs to refresh its local configuration

Note: Bootstrapping and provisioning are distinct.

• Provisioning creates or manages Magistrala entities such as devices and channels.
• Bootstrapping stores device bootstrap configs, renders templates, and returns the rendered configuration to the device.

Architecture

Bootstrap does not treat a config as a Magistrala device with connected channels. A bootstrap config is an enrollment-like record owned by Bootstrap. It can reference a profile, carry per-device render variables, and bind explicit resources such as devices or channels.

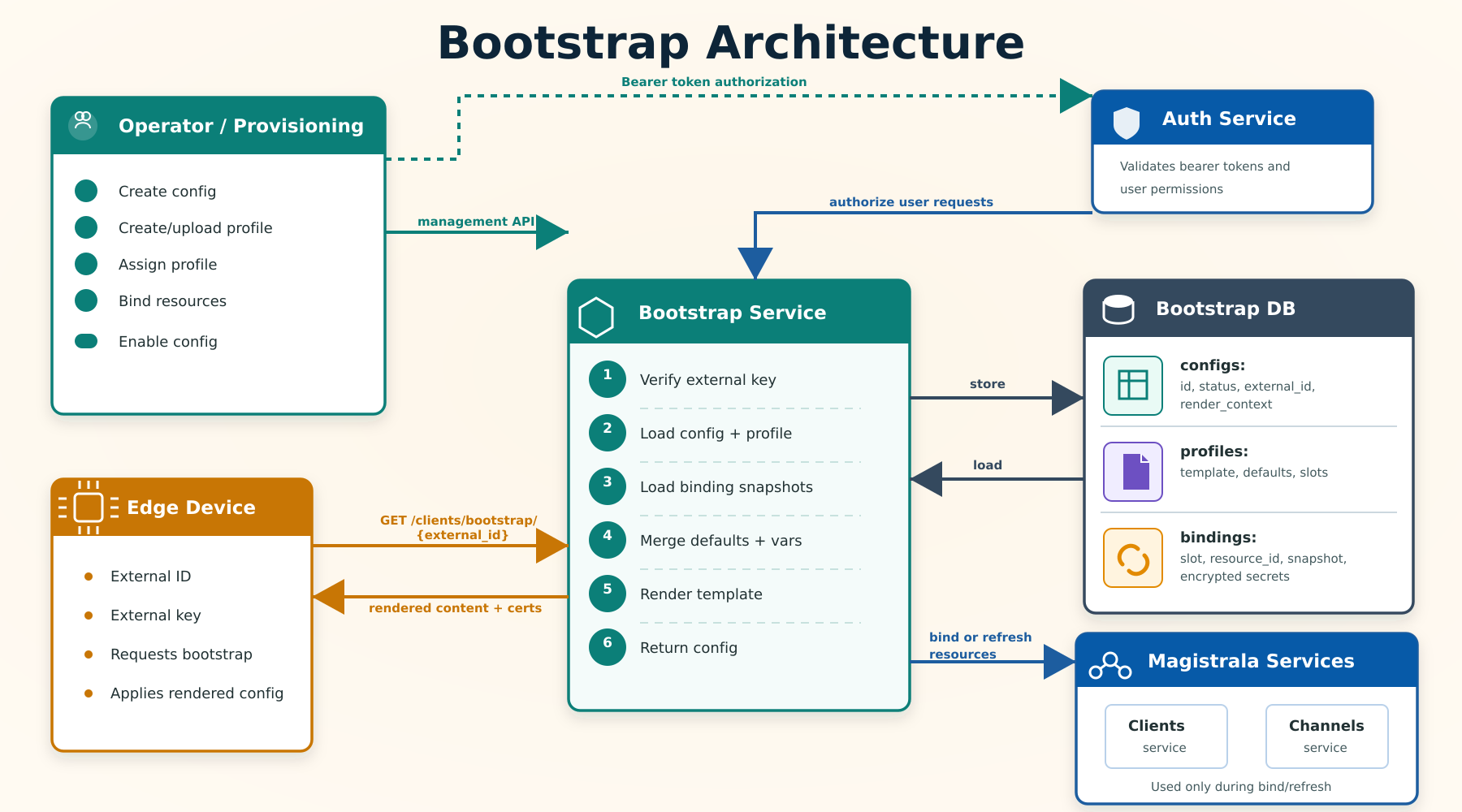

The diagram shows two Bootstrap flows. In the management flow, Bootstrap calls Magistrala services during bind or refresh to read the current device or channel data, then stores that data as binding snapshots in Bootstrap DB. In the device bootstrap flow, Bootstrap does not call the Devices or Channels services; it renders from the config, profile, and binding snapshots already stored in Bootstrap.

The main resources are:

• Config: A Bootstrap-owned device enrollment. It stores id, external_id, an encrypted external_key, optional profile_id, legacy certificate fields, and status.
• Profile: A reusable template for rendering device configuration. Profiles store template_format, content_template, shared defaults, and declared binding_slots.
• Binding slot: A named placeholder declared by a profile, for example mqtt_client, telemetry, or commands.
• Binding snapshot: A point-in-time copy of a bound resource. Bootstrap stores the resource type, resource_id, and non-secret snapshot.
• Render context: The data injected into templates. It is composed from profile defaults, config render_context, device identity, and binding snapshots.

Bootstrap does not automatically keep devices and channels synchronized during rendering. Resource data is copied into binding snapshots when resources are bound or refreshed. This keeps the device bootstrap path local to Bootstrap. Binding a resource only stores a snapshot of it — it does not create a connection between a device and a channel on the Magistrala side. If a device also needs to be connected to a channel to exchange messages, do that separately through the normal Devices/Channels connection flow.

Binding Slots

A binding slot is a named placeholder in a profile that says, "this template needs a resource here." It does not create the resource. It only declares what kind of resource must be attached before the profile can render correctly.

For example, a Raspberry Pi temperature profile can declare these slots:

[
  {
    "name": "mqtt_client",
    "type": "device",
    "required": true
  },
  {
    "name": "telemetry",
    "type": "channel",
    "required": true
  }
]

This means every config using that profile must bind:

• mqtt_client to an existing Magistrala device.
• telemetry to an existing Magistrala channel.

type must be device or channel; a binding request's type must match the slot's declared type exactly, or the bind is rejected with a 400.

After binding, the template can read the resolved data through .Bindings. For example, .Bindings.mqtt_client.ID refers to the bound device ID, and .Bindings.telemetry.ID refers to the bound channel ID.

The optional fields list on a slot controls which keys are copied from the resource into the binding snapshot when binding or refreshing. If omitted, all fields the resolver provides are snapshotted. Restrict fields to limit what data Bootstrap stores.

Bootstrap Flow

1. Create a config with an external_id and external_key.
2. Create or upload a profile template.
3. Assign the profile to the config.
4. Bind profile slots to concrete resources.
5. The device requests a challenge, then proves possession of its external key to redeem it.
6. Bootstrap verifies the proof, loads the profile and bindings, renders the template, and returns the rendered config in an encrypted envelope.

If you want to prevent devices from bootstrapping while the profile and bindings are being set up, disable the config after creation and re-enable it when ready.

Configs start enabled. An enabled config is immediately available for device bootstrap. Disable a config to prevent devices from bootstrapping while the profile or bindings are still being configured, then re-enable it when ready.

Configs

Configs are managed under:

/{workspace_id}/devices/configs

Create Config

curl -s -S -i -X POST \
  -H "Authorization: Bearer <user_token>" \
  -H "Content-Type: application/json" \
  http://localhost:9013/<workspace_id>/devices/configs \
  -d '{
    "external_id": "01:6:0:sb:sa",
    "external_key": "device-bootstrap-key",
    "name": "warehouse sensor config"
  }'

external_id identifies the device during bootstrap. external_key is optional: leave it out and Bootstrap generates a strong random one for you. Either way, the key is HKDF-derived and AES-256-GCM encrypted before storage — it is never hashed, and a workspace member with permission to view the config can read it back in plaintext through the management API (GET .../devices/configs/{config_id}), for example to hand it to a device during provisioning.

The response body is the created config, with its external_key decrypted back to plaintext so you can copy it onto the device. The id is server-generated. status is always enabled on creation regardless of what is sent. name must be unique within a workspace — attempting to create a second config with the same name in the same workspace returns 409 Conflict.

{
  "id": "3094cf29-e73f-4be1-a4d2-b5c5d7a827ec",
  "external_id": "01:6:0:sb:sa",
  "external_key": "eabGAhKfkBdHZgKpa3eOlTOmcI3c5dCVJtLweEj2IM8",
  "bootstrap_key_version": 1,
  "name": "warehouse sensor config",
  "status": "enabled"
}

Config Fields

{
  "id": "3094cf29-e73f-4be1-a4d2-b5c5d7a827ec",
  "external_id": "01:6:0:sb:sa",
  "external_key": "eabGAhKfkBdHZgKpa3eOlTOmcI3c5dCVJtLweEj2IM8",
  "bootstrap_key_version": 1,
  "name": "warehouse sensor config",
  "status": "enabled",
  "profile_id": "77708c94-3ff5-4068-ab5b-72d1318a9f1c",
  "content": "",
  "client_cert": "",
  "client_key": "",
  "ca_cert": ""
}

status is enabled or disabled. Numeric values are still accepted on write: 0 = enabled, 1 = disabled.

bootstrap_key_version increments whenever the config's external key is replaced (see Encryption and the device bootstrap protocol); an outstanding device-side challenge issued against an older key version is rejected.

content is a static fallback string. When no profile is assigned, Bootstrap returns this value as the rendered output. When a profile is assigned, content is ignored during rendering.

client_cert, client_key, and ca_cert are legacy fields from the older certificate-based bootstrap flow. They are unrelated to external_key and are updated through a separate endpoint.

Config Endpoints

List configs supports pagination and filters such as status, external_id, id, and partial name. By default, listing returns only enabled configs. Pass ?status=all to list configs regardless of status, or ?status=disabled to list only disabled configs.

Profiles

Profiles define reusable device templates. A profile can declare binding slots so operators know which resources must be bound before rendering.

Profiles are managed under:

/{workspace_id}/devices/bootstrap/profiles

Create Profile

curl -s -S -i -X POST \
  -H "Authorization: Bearer <user_token>" \
  -H "Content-Type: application/json" \
  http://localhost:9013/<workspace_id>/devices/bootstrap/profiles \
  -d '{
    "name": "mqtt sensor profile",
    "description": "Renders MQTT settings for a sensor",
    "template_format": "json",
    "defaults": {
      "qos": 1,
      "region": "nairobi"
    },
    "binding_slots": [
      {
        "name": "mqtt_client",
        "type": "device",
        "required": true,
        "fields": ["id", "name"]
      },
      {
        "name": "telemetry",
        "type": "channel",
        "required": true,
        "fields": ["id", "name"]
      }
    ],
    "content_template": "{\n  \"device_id\": \"{{ .Device.ID }}\",\n  \"external_id\": \"{{ .Device.ExternalID }}\",\n  \"site\": \"{{ .Vars.site }}\",\n  \"client_id\": \"{{ (index .Bindings \"mqtt_client\").ID }}\",\n  \"telemetry_channel\": \"{{ (index .Bindings \"telemetry\").ID }}\",\n  \"qos\": {{ .Vars.qos }}\n}"
  }'

version increments automatically on every profile update. It is read-only and is included in profile responses. Use it to track whether a profile has changed since a device last bootstrapped.

Supported template_format values are:

Template rendering uses missingkey=error, so missing variables fail rendering instead of silently producing invalid output.

The Go-template syntax of content_template is validated at create and update time, and submitting invalid syntax returns an error immediately. This check only parses the {{ }} template actions; it cannot know whether the rendered output is valid JSON/YAML/TOML until the template actually runs with real values, so a syntactically valid template can still fail JSON/YAML/TOML validation later, at render-preview or device-bootstrap time.

Upload Profile

Profiles can also be uploaded as JSON, YAML, or TOML:

curl -s -S -i -X POST \
  -H "Authorization: Bearer <user_token>" \
  -H "Content-Type: application/yaml" \
  http://localhost:9013/<workspace_id>/devices/bootstrap/profiles/upload \
  --data-binary @profile.yaml

The uploaded document uses the same fields as the create profile request.

Profile Slots

The slots-only endpoint returns just the binding slots declared by a profile:

curl -s -S \
  -H "Authorization: Bearer <user_token>" \
  http://localhost:9013/<workspace_id>/devices/bootstrap/profiles/<profile_id>/slots

Example response:

{
  "binding_slots": [
    {
      "name": "mqtt_client",
      "type": "device",
      "required": true,
      "fields": ["id", "name"]
    }
  ]
}

Render Preview

Render preview renders a profile without changing stored configs or bindings. It is useful for validating templates before assigning them to devices.

curl -s -S -X POST \
  -H "Authorization: Bearer <user_token>" \
  -H "Content-Type: application/json" \
  http://localhost:9013/<workspace_id>/devices/bootstrap/profiles/<profile_id>/render-preview \
  -d '{
    "config": {
      "id": "preview-config",
      "external_id": "01:6:0:sb:sa",
      "render_context": {
        "site": "warehouse-1"
      }
    },
    "bindings": [
      {
        "slot": "mqtt_client",
        "type": "device",
        "resource_id": "a-device-id",
        "snapshot": {
          "id": "a-device-id",
          "name": "sensor-device"
        }
      }
    ]
  }'

Example response:

{
  "content_type": "application/json",
  "content": "{\n  \"device_id\": \"preview-config\"\n}"
}

Profile Endpoints

Bindings

Bindings connect a config to the concrete resources required by its profile. Binding stores snapshots in Bootstrap so rendering does not need to call the devices or channels services.

Bindings are managed under:

/{workspace_id}/devices/bootstrap/enrollments

In this path, enrollment means the Bootstrap config. There is no separate create-enrollment endpoint; create configs with POST /{workspace_id}/devices/configs.

Assign Profile

curl -s -S -i -X PATCH \
  -H "Authorization: Bearer <user_token>" \
  -H "Content-Type: application/json" \
  http://localhost:9013/<workspace_id>/devices/bootstrap/enrollments/<config_id>/profile \
  -d '{
    "profile_id": "77708c94-3ff5-4068-ab5b-72d1318a9f1c"
  }'

Bind Resources

curl -s -S -i -X PUT \
  -H "Authorization: Bearer <user_token>" \
  -H "Content-Type: application/json" \
  http://localhost:9013/<workspace_id>/devices/bootstrap/enrollments/<config_id>/bindings \
  -d '{
    "bindings": [
      {
        "slot": "mqtt_client",
        "type": "device",
        "resource_id": "a7c1e8c0-c7e1-422e-8d7c-be0493f8142a"
      },
      {
        "slot": "telemetry",
        "type": "channel",
        "resource_id": "4819d016-6059-472d-9e39-eb10a9ccb30e"
      }
    ]
  }'

The profile must declare the requested slot, and the requested type must match the slot type exactly — a device binding against a channel slot (or vice versa) is rejected with 400 Bad Request. Required slots must be bound before the config can render successfully.

Binding only stores a snapshot of the resource in Bootstrap; it does not connect the device to a channel on the Magistrala side. Set up that connection separately through the normal Devices/Channels flow if the device also needs to exchange messages on it.

List Bindings

curl -s -S \
  -H "Authorization: Bearer <user_token>" \
  http://localhost:9013/<workspace_id>/devices/bootstrap/enrollments/<config_id>/bindings

Example response:

{
  "bindings": [
    {
      "config_id": "3094cf29-e73f-4be1-a4d2-b5c5d7a827ec",
      "slot": "mqtt_client",
      "type": "device",
      "resource_id": "a7c1e8c0-c7e1-422e-8d7c-be0493f8142a",
      "snapshot": {
        "id": "a7c1e8c0-c7e1-422e-8d7c-be0493f8142a",
        "name": "sensor-device",
        "workspace_id": "886b4266-77d1-4258-abae-2931fb4f16de"
      },
      "updated_at": "2026-05-05T10:00:00Z"
    }
  ]
}

A device's secret (used by a mqtt_client slot's Secret template field) is encrypted at rest and is not returned by the list endpoint. It is decrypted only when rendering.

Binding Endpoints

refresh re-calls Magistrala Devices and Channels services to update the stored snapshots for every binding on the config. Use it after a bound device's credentials rotate or a channel is reconfigured. Rendering always uses the last stored snapshot, so devices will not see updated resource data until after a refresh.

Template Data

Profile templates receive this render context:

type RenderContext struct {
    Device   DeviceContext
    Vars     map[string]any
    Bindings map[string]BindingContext
}

Template fields:

Profile defaults are merged first, then config render_context values are applied on top. Config values always win over profile defaults when both have the same key. .Device.* identity fields are always available regardless of what is in defaults or render_context.

Templates are rendered with missingkey=error. A template that references .Vars.key where key is absent from both defaults and render_context will fail rendering and Bootstrap will return an error to the device.

Encryption and the device bootstrap protocol

Every enrollment has a Bootstrap root key: its exact UTF-8 bytes are the external_key you set (or the random one Bootstrap generates when you omit it). The device never sends that root key over the network. Instead it proves possession of it through a short-lived challenge:

1. The device requests a challenge: POST /devices/bootstrap/challenges/{externalID}. Bootstrap returns a challenge_id, a server_nonce, an expires_at (one minute from issue), and the enrollment's current key_version.
2. The device generates a random 32-byte nonce of its own, then derives a 32-byte authentication key with HKDF-SHA256 (salt = external ID, info = magistrala-bootstrap-auth-v1) from the root key.
3. It HMACs the newline-separated values v1, external ID, challenge ID, server nonce, device nonce, and decimal key version, to produce a proof.
4. It sends the unpadded-base64url device nonce and proof to POST /devices/bootstrap/configurations/{externalID}.
5. Bootstrap verifies the proof, consumes the (single-use) challenge, renders the config, and returns an AES-256-GCM encrypted envelope. The device derives the response key the same way (same root key and salt, but info magistrala-bootstrap-response-v1) and decrypts it locally.
6. content_type in the decrypted response tells the device how to parse content (application/json, application/yaml, application/toml, or text/plain).

This application-layer encryption protects device authentication and Bootstrap content even when a constrained deployment uses plain HTTP. Plain HTTP still reveals network metadata and permits traffic blocking, replay attempts, and denial of service, so HTTPS should be used whenever the device supports it.

Replacing an enrollment's external key (PATCH .../devices/configs/{config_id} with a new external_key) increments bootstrap_key_version and invalidates any outstanding challenge issued under the old version.

Worked example

# 1. Request a challenge
curl -s -X POST http://localhost:9013/devices/bootstrap/challenges/01%3A6%3A0%3Asb%3Asa

{
  "challenge_id": "2fe5726c-4cae-41e2-a049-3ecbb526abe9",
  "server_nonce": "c5ZwwkR44sBwwyiBEiDjmUaRUa2YxLudNViG_1p3U48",
  "expires_at": "2026-09-01T15:29:30.983547599Z",
  "key_version": 1
}

# 2. Send the device nonce and HMAC proof computed from the root key
curl -s -X POST http://localhost:9013/devices/bootstrap/configurations/01%3A6%3A0%3Asb%3Asa \
  -H "Content-Type: application/json" \
  -d '{
    "challenge_id": "2fe5726c-4cae-41e2-a049-3ecbb526abe9",
    "device_nonce": "60PftF9v18fzxeem8G0p1Ft5S72yEscbWO9CD5f__Yg",
    "proof": "wjc03bEYYtk54BYYyegBLr8iGaI7-N6gyOskAfo6EDc"
  }'

{
  "version": "v1",
  "key_version": 1,
  "challenge_id": "2fe5726c-4cae-41e2-a049-3ecbb526abe9",
  "nonce": "3a8CZrRj1v7MGQZB",
  "ciphertext": "yzjDsCsQexDaOp8r-w1LuA3ZMqsNKS8aSGmkWLT4LFrvtnHRlPoQxvifshfqhMBy9KWNpXONcaov0KYyYPhMgK9ENsLDRNnlAiUklD0GhlAN90UxGLvAZJ-4lLPpw-PHjKlleFjP"
}

Decrypting ciphertext locally with the response key yields the rendered config, for example:

{
  "id": "c49cb881-417e-4d9c-8b92-405a50490580",
  "content_type": "text/plain",
  "content": ""
}

Working reference implementations of steps 2–5 (deriving the keys, computing the proof, and decrypting the response with the Web Crypto API) ship in the workspace UI itself: open a config's detail page and use the Device provisioning and test panel, or read its implementation for a language-agnostic walkthrough of the protocol.

Render errors — Bootstrap returns a non-2xx status if the config is disabled, a required binding slot has no snapshot, or template execution fails. Devices should treat any error response as a signal to retry after a backoff.

Device bootstrap endpoints:

Operational Endpoints

CLI

The Magistrala CLI exposes the management side of Bootstrap:

magistrala-cli bootstrap create '<JSON_config>' <workspace_id> <user_auth_token>
magistrala-cli bootstrap get all <workspace_id> <user_auth_token>
magistrala-cli bootstrap get <config_id> <workspace_id> <user_auth_token>
magistrala-cli bootstrap update config '<JSON_config>' <workspace_id> <user_auth_token>
magistrala-cli bootstrap remove <config_id> <workspace_id> <user_auth_token>
magistrala-cli bootstrap whitelist '<JSON_config>' <workspace_id> <user_auth_token>
magistrala-cli bootstrap profiles create '<JSON_profile>' <workspace_id> <user_auth_token>
magistrala-cli bootstrap profiles get all <workspace_id> <user_auth_token>
magistrala-cli bootstrap profiles get <profile_id> <workspace_id> <user_auth_token>
magistrala-cli bootstrap profiles update '<JSON_profile>' <workspace_id> <user_auth_token>
magistrala-cli bootstrap profiles remove <profile_id> <workspace_id> <user_auth_token>
magistrala-cli bootstrap enrollments assign-profile <config_id> <profile_id> <workspace_id> <user_auth_token>
magistrala-cli bootstrap enrollments bind <config_id> '<JSON_bindings>' <workspace_id> <user_auth_token>
magistrala-cli bootstrap enrollments get-bindings <config_id> <workspace_id> <user_auth_token>
magistrala-cli bootstrap enrollments refresh-bindings <config_id> <workspace_id> <user_auth_token>

The CLI still uses whitelist for compatibility; it calls the same config status enable/disable endpoints as the UI.

The CLI's own bootstrap bootstrap <external_id> <external_key> device-simulation subcommand has not yet been updated to the challenge/proof protocol above and does not currently work against this service version. To exercise the device side — whether that's testing an integration or debugging a config — use the worked curl example above, the UI's Device provisioning and test panel, or a device-side implementation of the protocol.

Compatibility Notes

• The old state naming has moved to status. Numeric values are still accepted on write: 0 = enabled, 1 = disabled.
• Configs are created enabled by default. Disable a config during setup to block device access, then re-enable when ready.
• Binding snapshots are the source for template resource data. If a device or channel changes after binding, refresh the bindings before the next bootstrap render. Binding does not create a device-to-channel connection by itself.
• Legacy certificate fields (client_cert, client_key, ca_cert) remain on configs and can still be updated through the certs endpoint, for deployments still on the older certificate-based bootstrap flow.
